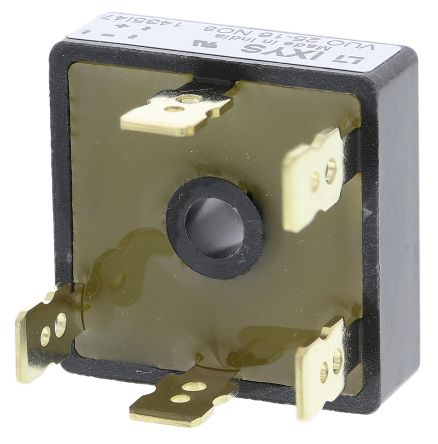

IXYS VUO25-16NO8, 3-phase Bridge Rectifier Module, 25A 1600V, 5-Pin FO B B [VUO25-16NO8]; 462-067
by IXYS
0₫
Mã kho: 462067
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Peak Average Forward Current | 25A |
| Bridge Type | Three Phase |
| Peak Reverse Repetitive Voltage | 1600V |
| Mounting Type | Screw Mount |
| Package Type | FO B B |
| Pin Count | 5 |
| Diode Technology | Silicon Junction |
| Configuration | Single |
| Peak Non-Repetitive Forward Surge Current | 400A |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -40 °C |
| Peak Forward Voltage | 2.2V |
| Peak Reverse Current | 300µA |
| Length | 28.5mm |
| Width | 28.5mm |
| Dimensions | 28.5 x 28.5 x 10mm |
| Height | 10mm |
