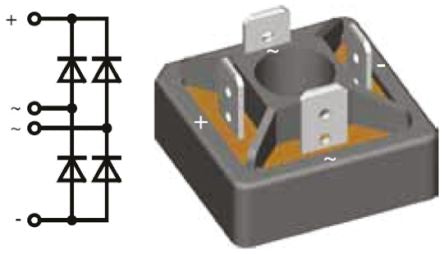

IXYS VBO25-08NO2, Bridge Rectifier Module, 38A 800V, 4-Pin FO-A [VBO25-08NO2]; 761-4145
by IXYS
0₫
Mã kho: 7614145
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Bridge Type | Single Phase |
Peak Average Forward Current | 38A |
Peak Reverse Repetitive Voltage | 800V |
Mounting Type | Screw Mount |
Package Type | FO-A |
Pin Count | 4 |
Configuration | Single |
Peak Non-Repetitive Forward Surge Current | 390A |
Maximum Operating Temperature | +150 °C |
Minimum Operating Temperature | -40 °C |
Peak Forward Voltage | 1.36V |
Peak Reverse Current | 5mA |
Length | 28.9mm |
Width | 28.9mm |
Dimensions | 28.9 x 28.9 x 14.5mm |
Height | 14.5mm |
