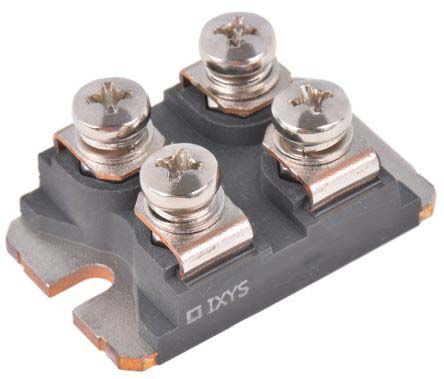

IXYS, MMO90-16io6, Dual Thyristor Module, SCR, 50A 1600V, 4-Pin SOT-227B [MMO90-16io6]; 135-8273
by IXYS
0₫
Mã kho: 1358273
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Thyristor Type | SCR |
| Maximum Gate Trigger Voltage | 1.6V |
| Maximum Gate Trigger Current | 200mA |
| Maximum Holding Current | 100mA |
| Rated Average On-State Current | 50A |
| Repetitive Peak Reverse Voltage | 1600V |
| Surge Current Rating | 865A |
| Mounting Type | Surface Mount |
| Package Type | SOT-227B |
| Pin Count | 4 |
| Repetitive Peak Forward Blocking Voltage | 1600V |
| Dimensions | 38.23 x 25.25 x 12.22mm |
| Minimum Operating Temperature | -40 °C |
| Length | 38.23mm |
| Width | 25.25mm |
| Height | 12.22mm |
| Maximum Operating Temperature | +125 °C |
