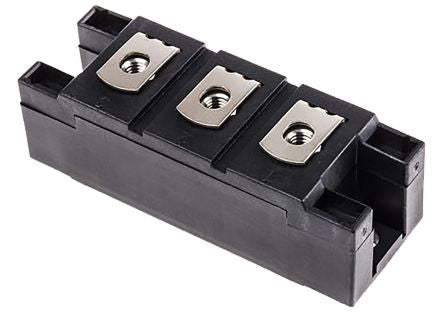

IXYS 1200V 260A, Dual Diode, 3-Pin Y4-M6 MEE250-12DA [MEE250-12DA]; 168-4592
by IXYS
0₫
Mã kho: 1684592
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Mounting Type | Panel Mount |
Package Type | Y4-M6 |
Maximum Continuous Forward Current | 260A |
Peak Reverse Repetitive Voltage | 1200V |
Diode Configuration | Series |
Rectifier Type | Fast Recovery |
Diode Type | Silicon Junction |
Pin Count | 3 |
Maximum Forward Voltage Drop | 1.8V |
Number of Elements per Chip | 2 |
Diode Technology | Silicon Junction |
Peak Reverse Recovery Time | 500ns |
Peak Non-Repetitive Forward Surge Current | 2.64kA |
