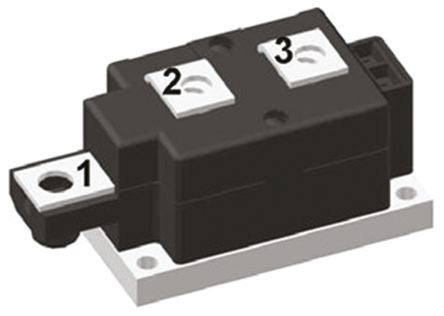

IXYS 1600V 380A, Dual Diode, 7-Pin Case Y1 MDMA380P1600KC [MDMA380P1600KC]; 168-4721
by IXYS
0₫
Mã kho: 1684721
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Mounting Type | Panel Mount |
| Package Type | Case Y1 |
| Maximum Continuous Forward Current | 380A |
| Peak Reverse Repetitive Voltage | 1600V |
| Diode Configuration | Series |
| Diode Type | Silicon Junction |
| Pin Count | 7 |
| Maximum Forward Voltage Drop | 1.18V |
| Number of Elements per Chip | 2 |
| Diode Technology | Silicon Junction |
| Peak Non-Repetitive Forward Surge Current | 11.9kA |
