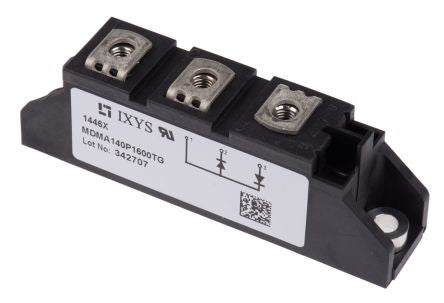

IXYS 1600V 140A, Dual Diode, 7-Pin TO-240 MDMA140P1600TG [MDMA140P1600TG]; 801-1534
by IXYS
0₫
Mã kho: 8011534
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Mounting Type | Panel Mount |
| Package Type | TO-240 |
| Maximum Continuous Forward Current | 140A |
| Peak Reverse Repetitive Voltage | 1600V |
| Diode Configuration | Series |
| Diode Type | Silicon Junction |
| Pin Count | 7 |
| Maximum Forward Voltage Drop | 1.43V |
| Number of Elements per Chip | 2 |
| Diode Technology | Silicon Junction |
| Peak Non-Repetitive Forward Surge Current | 3.03kA |
