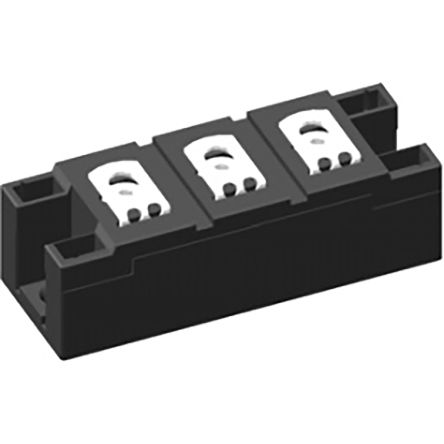

IXYS 1200V 165A, Dual Diode, 3-Pin Y4 M6 MDD142-12N1B [MDD142-12N1B]; 146-1712
by IXYS
0₫
Mã kho: 1461712
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Mounting Type | Panel Mount |
| Package Type | Y4 M6 |
| Maximum Continuous Forward Current | 165A |
| Peak Reverse Repetitive Voltage | 1200V |
| Diode Configuration | Series |
| Diode Type | Silicon Junction |
| Pin Count | 3 |
| Maximum Forward Voltage Drop | 1.3V |
| Number of Elements per Chip | 2 |
| Diode Technology | Silicon Junction |
| Peak Non-Repetitive Forward Surge Current | 4.7kA |
