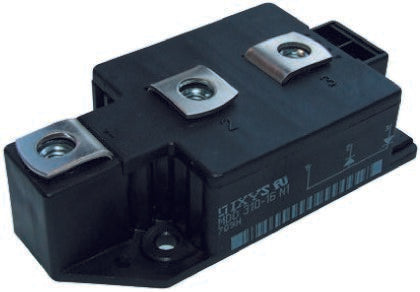

IXYS, MCD310-22IO1, Thyristor Module SCR, 320A 2100V, 5-Pin Y2 DCB [MCD310-22IO1]; 194-675
by IXYS
0₫
Mã kho: 194675
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Thyristor Type | SCR Module |
| Maximum Gate Trigger Voltage | 2V |
| Maximum Gate Trigger Current | 150mA |
| Maximum Holding Current | 150mA |
| Rated Average On-State Current | 320A |
| Repetitive Peak Reverse Voltage | 2100V |
| Surge Current Rating | 8.6kA |
| Mounting Type | Panel Mount |
| Package Type | Y2 DCB |
| Pin Count | 5 |
| Peak On-State Voltage | 1.4V |
| Repetitive Peak Forward Blocking Voltage | 2100V |
| Repetitive Peak Off-State Current | 40mA |
| Dimensions | 116 x 60 x 32mm |
| Length | 116mm |
| Maximum Operating Temperature | +140 °C |
| Height | 32mm |
| Width | 60mm |
| Minimum Operating Temperature | -40 °C |
