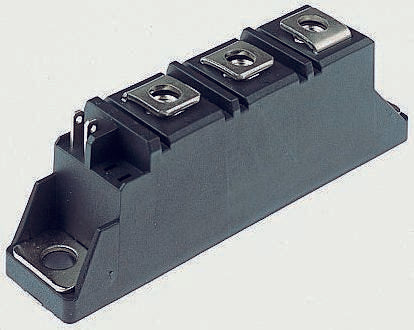

IXYS, MCC95-12io1B, Dual Thyristor Module SCR, 116A 1200V, 7-Pin TO-240AA [MCC95-12IO1B]; 177-5361
by IXYS
0₫
Mã kho: 1775361
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Thyristor Type | SCR Module |
| Maximum Gate Trigger Voltage | 2.5V |
| Maximum Gate Trigger Current | 150mA |
| Maximum Holding Current | 200mA |
| Rated Average On-State Current | 116A |
| Repetitive Peak Reverse Voltage | 1200V |
| Surge Current Rating | 2.4kA |
| Mounting Type | Panel Mount |
| Package Type | TO-240AA |
| Pin Count | 7 |
| Peak On-State Voltage | 1.5V |
| Repetitive Peak Forward Blocking Voltage | 1200V |
| Repetitive Peak Off-State Current | 5mA |
| Dimensions | 92 x 20.8 x 30mm |
| Maximum Operating Temperature | +125 °C |
| Height | 30mm |
| Length | 92mm |
| Minimum Operating Temperature | -40 °C |
| Width | 20.8mm |
