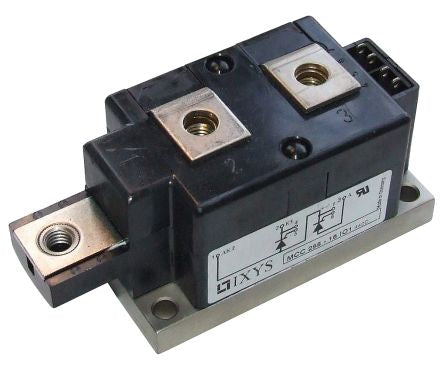

IXYS, MCC255-16IO1, Dual Thyristor Module SCR, 250A 1600V, 7-Pin Y1 CU [MCC255-16IO1]; 193-969
by IXYS
0₫
Mã kho: 193969
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Thyristor Type | SCR Module |
| Maximum Gate Trigger Voltage | 2V |
| Maximum Gate Trigger Current | 150mA |
| Maximum Holding Current | 150mA |
| Rated Average On-State Current | 250A |
| Repetitive Peak Reverse Voltage | 1600V |
| Surge Current Rating | 9.6kA |
| Mounting Type | Panel Mount |
| Package Type | Y1 CU |
| Pin Count | 7 |
| Peak On-State Voltage | 1.36V |
| Repetitive Peak Forward Blocking Voltage | 1600V |
| Repetitive Peak Off-State Current | 40mA |
| Dimensions | 115 x 50 x 49mm |
| Minimum Operating Temperature | -40 °C |
| Length | 115mm |
| Width | 50mm |
| Maximum Operating Temperature | +130 °C |
| Height | 49mm |
