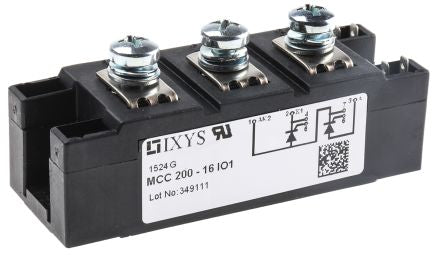

IXYS, MCC200-16IO1, Dual Thyristor Module SCR, 216A 1600V, 7-Pin Y4 M6 [MCC200-16IO1]; 462-186
by IXYS
0₫
Mã kho: 462186
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Thyristor Type | SCR Module |
| Maximum Gate Trigger Voltage | 2V |
| Maximum Gate Trigger Current | 150mA |
| Maximum Holding Current | 150mA |
| Rated Average On-State Current | 216A |
| Repetitive Peak Reverse Voltage | 1600V |
| Surge Current Rating | 8.6kA |
| Mounting Type | Panel Mount |
| Package Type | Y4 M6 |
| Pin Count | 7 |
| Peak On-State Voltage | 1.2V |
| Repetitive Peak Forward Blocking Voltage | 1600V |
| Repetitive Peak Off-State Current | 15mA |
| Dimensions | 94 x 34 x 30mm |
| Length | 94mm |
| Width | 34mm |
| Height | 30mm |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -40 °C |
