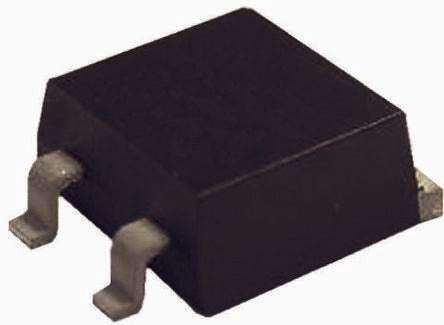

IXFT94N30P3 N-Channel MOSFET, 94 A, 300 V HiperFET, Polar3, 3-Pin TO-268 IXYS [IXFT94N30P3]; 802-4483
by IXYS
0₫
Mã kho: 8024483
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 94 A |
Maximum Drain Source Voltage | 300 V |
Package Type | TO-268 |
Mounting Type | Surface Mount |
Pin Count | 3 |
Maximum Drain Source Resistance | 36 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 5V |
Maximum Power Dissipation | 1.04 kW |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -20 V, +20 V |
Number of Elements per Chip | 1 |
Minimum Operating Temperature | -55 °C |
Transistor Material | Si |
Length | 16.05mm |
Typical Gate Charge @ Vgs | 102 nC @ 10 V |
Width | 14mm |
Series | HiperFET, Polar3 |
Maximum Operating Temperature | +150 °C |
Height | 5.1mm |
