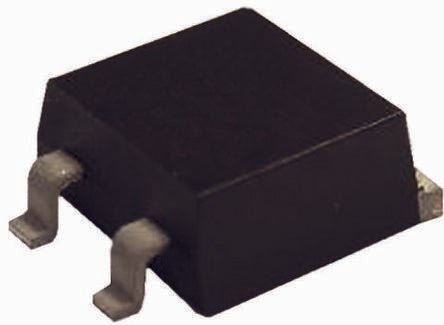

IXFT15N100Q3 N-Channel MOSFET, 15 A, 1000 V HiperFET, Q3-Class, 3-Pin TO-268 IXYS [IXFT15N100Q3]; 801-1468
by IXYS
0₫
Mã kho: 8011468
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 15 A |
| Maximum Drain Source Voltage | 1000 V |
| Package Type | TO-268 |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 1.05 Ω |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 6.5V |
| Maximum Power Dissipation | 690 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -30 V, +30 V |
| Number of Elements per Chip | 1 |
| Series | HiperFET, Q3-Class |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
| Transistor Material | Si |
| Length | 16.05mm |
| Height | 5.1mm |
| Width | 14mm |
| Typical Gate Charge @ Vgs | 64 nC @ 10 V |
