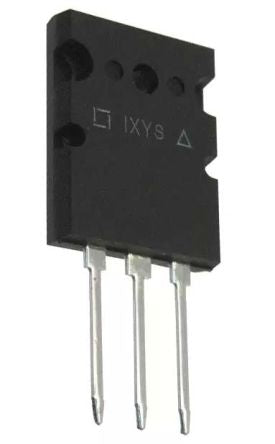

IXFK66N85X N-Channel MOSFET, 66 A, 850 V HiperFET, 3-Pin TO264 IXYS [IXFK66N85X]; 146-4374
by IXYS
0₫
Mã kho: 1464374
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 66 A |
| Maximum Drain Source Voltage | 850 V |
| Package Type | TO264 |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 65 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 5.5V |
| Minimum Gate Threshold Voltage | 3.5V |
| Maximum Power Dissipation | 1.25 kW |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | ±30 V |
| Number of Elements per Chip | 1 |
| Width | 5.3mm |
| Length | 20.3mm |
| Forward Diode Voltage | 1.4V |
| Minimum Operating Temperature | -55 °C |
| Typical Gate Charge @ Vgs | 230 @ 10 V nC |
| Height | 26.3mm |
| Series | HiperFET |
| Maximum Operating Temperature | +150 °C |
