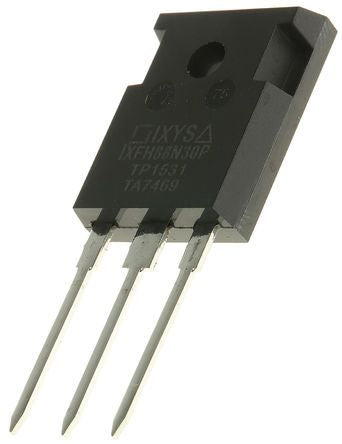

![IXYS IXFH88N30P 9200732](http://nguyenxuong.com/cdn/shop/products/R9200732-01_342x444.jpg?v=1594142388)
IXFH88N30P N-Channel MOSFET, 88 A, 300 V HiperFET, Polar, 3-Pin TO-247 IXYS [IXFH88N30P]; 920-0732
by IXYS
0₫
Mã kho: 9200732
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 88 A |
Maximum Drain Source Voltage | 300 V |
Package Type | TO-247 |
Mounting Type | Through Hole |
Pin Count | 3 |
Maximum Drain Source Resistance | 40 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 5V |
Maximum Power Dissipation | 600 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -20 V, +20 V |
Number of Elements per Chip | 1 |
Typical Gate Charge @ Vgs | 180 nC @ 10 V |
Minimum Operating Temperature | -55 °C |
Transistor Material | Si |
Length | 16.26mm |
Maximum Operating Temperature | +150 °C |
Series | HiperFET, Polar |
Height | 21.46mm |
Width | 5.3mm |
