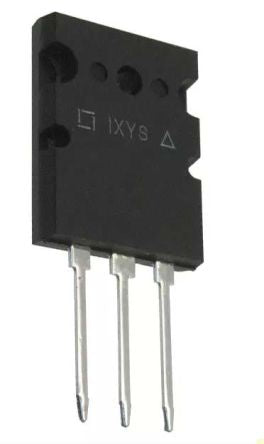

![IXYS IXFB150N65X2 1464401](http://nguyenxuong.com/cdn/shop/products/Y1464401-01_264x444.jpg?v=1594206716)
IXFB150N65X2 N-Channel MOSFET, 150 A, 650 V HiperFET, 3-Pin PLUS264 IXYS [IXFB150N65X2]; 146-4401
by IXYS
0₫
Mã kho: 1464401
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 150 A |
Maximum Drain Source Voltage | 650 V |
Package Type | PLUS264 |
Mounting Type | Through Hole |
Pin Count | 3 |
Maximum Drain Source Resistance | 17 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 5V |
Minimum Gate Threshold Voltage | 3.5V |
Maximum Power Dissipation | 1.56 kW |
Transistor Configuration | Single |
Maximum Gate Source Voltage | ±30 V |
Number of Elements per Chip | 1 |
Width | 5.31mm |
Minimum Operating Temperature | -55 °C |
Maximum Operating Temperature | +150 °C |
Forward Diode Voltage | 1.4V |
Height | 26.59mm |
Typical Gate Charge @ Vgs | 355 @ 10 V nC |
Series | HiperFET |
Length | 20.26mm |
