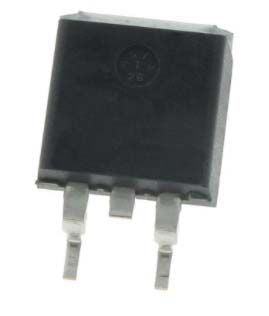

IXFA80N25X3 N-Channel MOSFET, 80 A, 250 V HiperFET, 2 + Tab-Pin D2PAK IXYS [IXFA80N25X3]; 146-4403
by IXYS
0₫
Mã kho: 1464403
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 80 A |
| Maximum Drain Source Voltage | 250 V |
| Package Type | D2PAK (TO-263) |
| Mounting Type | Surface Mount |
| Pin Count | 2 + Tab |
| Maximum Drain Source Resistance | 16 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 4.5V |
| Minimum Gate Threshold Voltage | 2.5V |
| Maximum Power Dissipation | 390 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | ±20 V |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Width | 11.05mm |
| Forward Diode Voltage | 1.4V |
| Typical Gate Charge @ Vgs | 83 @ 10 V nC |
| Height | 4.83mm |
| Series | HiperFET |
| Maximum Operating Temperature | +150 °C |
| Length | 10.41mm |
