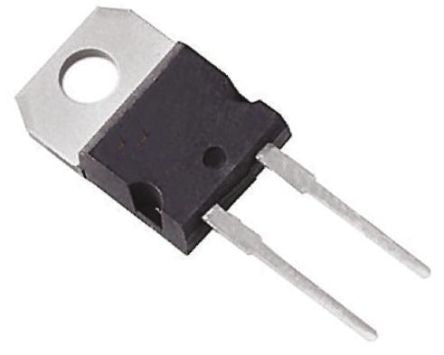

IXYS 1600V 30A, Diode, 2-Pin TO-220AC DSI30-16A [DSI30-16A]; 761-4013
by IXYS
0₫
Mã kho: 7614013
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Mounting Type | Through Hole |
Package Type | TO-220AC |
Maximum Continuous Forward Current | 30A |
Peak Reverse Repetitive Voltage | 1600V |
Diode Configuration | Single |
Diode Type | Silicon Junction |
Pin Count | 2 |
Maximum Forward Voltage Drop | 1.45V |
Number of Elements per Chip | 1 |
Diode Technology | Silicon Junction |
Peak Non-Repetitive Forward Surge Current | 330A |
