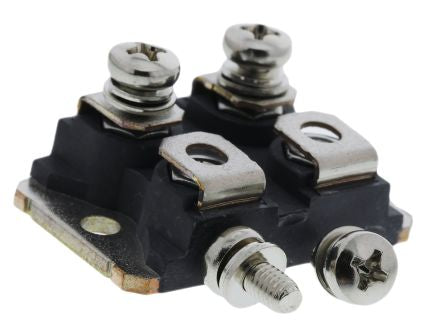

IXYS 1200V 102A, Dual Diode, 4-Pin SOT-227B DSEI2X61-12B [DSEI2X61-12B]; 168-4407
by IXYS
0₫
Mã kho: 1684407
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Mounting Type | Panel Mount |
| Package Type | SOT-227B |
| Maximum Continuous Forward Current | 102A |
| Peak Reverse Repetitive Voltage | 1200V |
| Diode Configuration | Isolated |
| Rectifier Type | Switching |
| Diode Type | Silicon Junction |
| Pin Count | 4 |
| Maximum Forward Voltage Drop | 2.5V |
| Number of Elements per Chip | 2 |
| Diode Technology | Silicon Junction |
| Peak Reverse Recovery Time | 60ns |
| Peak Non-Repetitive Forward Surge Current | 500A |
