![IXYS DSEI12-06A 193098](http://nguyenxuong.com/cdn/shop/products/R183709-01_0e8557ed-fcb8-486e-8f84-b1f11ef7ed1c_444x210.jpg?v=1594242666)

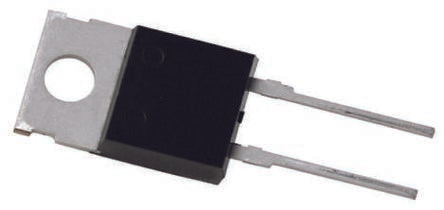

IXYS 600V 14A, Diode, 2-Pin TO-220AC DSEI12-06A [DSEI12-06A]; 193-098
by IXYS
0₫
Mã kho: 193098
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Mounting Type | Through Hole |
Package Type | TO-220AC |
Maximum Continuous Forward Current | 14A |
Peak Reverse Repetitive Voltage | 600V |
Diode Configuration | Single |
Rectifier Type | Switching |
Diode Type | Silicon Junction |
Pin Count | 2 |
Maximum Forward Voltage Drop | 1.7V |
Number of Elements per Chip | 1 |
Diode Technology | Silicon Junction |
Peak Reverse Recovery Time | 50ns |
Peak Non-Repetitive Forward Surge Current | 110A |
