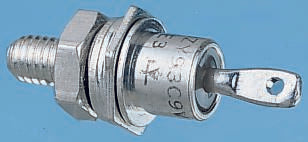

IXYS 1200V 25A, Diode, 2-Pin DO-203AA DS17-12A [DS17-12A]; 146-1688
by IXYS
0₫
Mã kho: 1461688
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Mounting Type | Thread Mount |
Package Type | DO-203AA |
Maximum Continuous Forward Current | 25A |
Peak Reverse Repetitive Voltage | 1200V |
Diode Configuration | Stud Anode |
Pin Count | 2 |
Maximum Forward Voltage Drop | 1.36V |
Number of Elements per Chip | 1 |
Diode Technology | Silicon Junction |
Peak Non-Repetitive Forward Surge Current | 400A |
