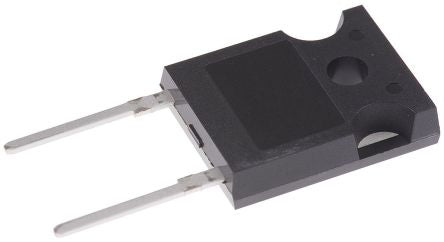

IXYS 600V 20A, Diode, 2-Pin TO-247AD DHG20I600HA [DHG20I600HA]; 168-4529
by IXYS
0₫
Mã kho: 1684529
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Mounting Type | Through Hole |
| Package Type | TO-247AD |
| Maximum Continuous Forward Current | 20A |
| Peak Reverse Repetitive Voltage | 600V |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Diode Type | Silicon Junction |
| Pin Count | 2 |
| Maximum Forward Voltage Drop | 3.08V |
| Number of Elements per Chip | 1 |
| Diode Technology | Silicon Junction |
| Peak Reverse Recovery Time | 35ns |
| Peak Non-Repetitive Forward Surge Current | 150A |
