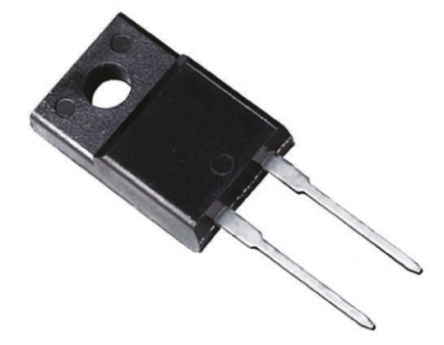

IXYS 600V 10A, Diode, 3-Pin TO-3P DHG10I600PM [DHG10I600PM]; 168-4528
by IXYS
0₫
Mã kho: 1684528
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Mounting Type | Through Hole |
| Package Type | TO-3P |
| Maximum Continuous Forward Current | 10A |
| Peak Reverse Repetitive Voltage | 600V |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Diode Type | Silicon Junction |
| Pin Count | 3 |
| Maximum Forward Voltage Drop | 2.35V |
| Number of Elements per Chip | 1 |
| Diode Technology | Silicon Junction |
| Peak Reverse Recovery Time | 35ns |
| Peak Non-Repetitive Forward Surge Current | 100A |
