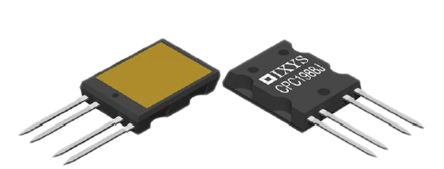

IXYS 9.4 A rms SPNO Solid State Relay, DC, PCB Mount, MOSFET [CPC1988J]; 906-1108
by IXYS
0₫
Mã kho: 9061108
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Load Current | 9.4 A rms |
| Mounting Type | PCB Mount |
| Switching Type | DC |
| Contact Configuration | SPNO |
| Terminal Type | PCB Pin |
| Output Device | MOSFET |
| Package Style | ISO Plus-264 |
| Maximum Turn On Time | 20 ms |
| Dimensions | 19.914 x 5.029 x 26.162mm |
| Number of Poles | 1 |
| Capacitance | 540pF |
| Depth | 5.03mm |
| Special Features | Arc-Free With No Snubbing Circuits, High Reliability, Low Drive Power Requirement, Machine Insertable, No EMI/RFI Generation, Wave Solderable |
| Operating Temperature Range | -40 → +85°C |
| Off State Leakage Current | 1 μA |
| Height | 26.16mm |
| Standards Met | UL 508 Approved File No E69938 |
| Relay Type | Power Relay |
| Length | 19.91mm |
