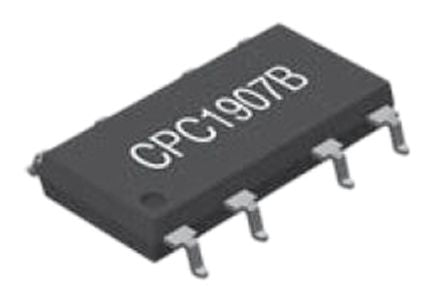

IXYS ±6 A dc SPNO Solid State Relay, DC, Surface Mount, MOSFET [CPC1907B]; 906-1073
by IXYS
0₫
Mã kho: 9061073
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Load Current | ±6 A dc |
| Mounting Type | Surface Mount |
| Switching Type | DC |
| Contact Configuration | SPNO |
| Terminal Type | PCB Pin |
| Output Device | MOSFET |
| Package Style | SOIC |
| Maximum Turn On Time | 5 ms |
| Dimensions | 21.082 x 10.16 x 3.302mm |
| Length | 21.08mm |
| Off State Leakage Current | 1 μA |
| Operating Temperature Range | -40 → +85°C |
| Depth | 10.16mm |
| Capacitance | 340pF |
| Number of Poles | 1 |
| Relay Type | OptoMOS |
| Special Features | Arc-Free With No Snubbing Circuits, High Reliability, Low Drive Power Requirement, Machine Insertable, No EMI/RFI Generation, Wave Solderable |
| Standards Met | UL 508 Approved File No E69938 |
| Height | 3.3mm |
