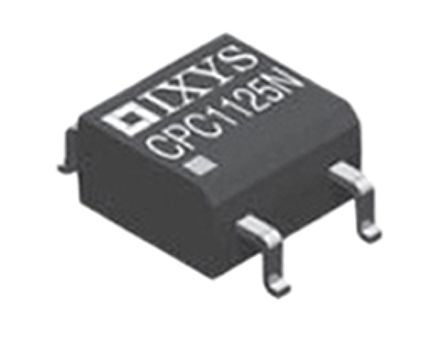

IXYS 100 mA rms/mA dc SP-NC Solid State Relay, DC, Surface Mount, Relay [CPC1125N]; 906-1048
by IXYS
0₫
Mã kho: 9061048
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Load Current | 100 mA rms/mA dc |
| Mounting Type | Surface Mount |
| Switching Type | DC |
| Contact Configuration | SP-NC |
| Terminal Type | PCB Pin |
| Output Device | Relay |
| Package Style | SOP |
| Maximum Turn On Time | 2 ms |
| Dimensions | 4.089 x 3.81 x 2.1203mm |
| Relay Type | OptoMOS |
| Number of Poles | 1 |
| Capacitance | 6pF |
| Depth | 3.81mm |
| Operating Temperature Range | -40 → +85°C |
| Off State Leakage Current | 5 μA |
| Length | 4.09mm |
| Height | 2.12mm |
| Special Features | Arc-Free With No Snubbing Circuits, High Reliability, Immune to Radiate FM Interface, No EMI/RFI Generation, Wave Solderable |
| Standards Met | CSA, EN60950-1: 2006, IEC 60950-1: 2005, TUV Certificate B 09 07 49410 006, UL File E76270 |
