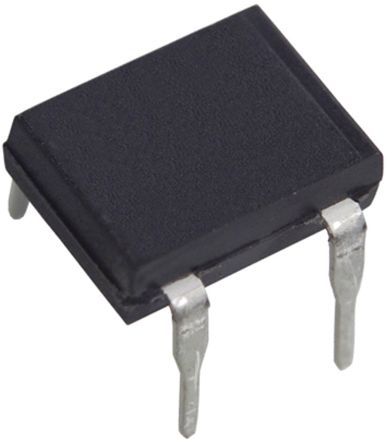

Isocom, IS7000SMT&R DC Input Photodarlington Output Optocoupler, Surface Mount, 4-Pin DIP [IS7000SMT&R]; 171-8185
by Isocom
0₫
Mã kho: 1718185
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Mounting Type | Surface Mount |
| Output Device | Photodarlington |
| Maximum Forward Voltage | 1.4V |
| Number of Channels | 1 |
| Number of Pins | 4 |
| Package Type | DIP |
| Input Current Type | DC |
| Typical Rise Time | 100µs |
| Maximum Input Current | 50 mA |
| Isolation Voltage | 5 kVrms |
| Maximum Current Transfer Ratio | 40 |
| Typical Fall Time | 20µs |
| Minimum Current Transfer Ratio | 10 |
| Special Features | AC Isolation Voltage 5000 Vrms, High Current Transfer Ratio |
| Series | IS7000 |
