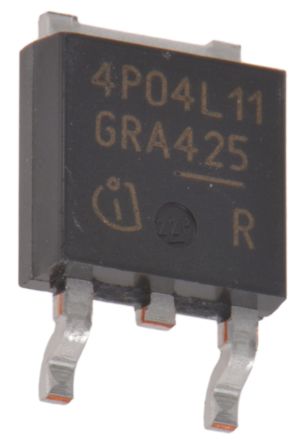

IPD50P04P4L11ATMA1 P-Channel MOSFET, 50 A, 40 V OptiMOS P, 3-Pin DPAK Infineon [IPD50P04P4L11ATMA1]; 826-9112
by Infineon
0₫
Mã kho: 8269112
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | P |
| Maximum Continuous Drain Current | 50 A |
| Maximum Drain Source Voltage | 40 V |
| Package Type | DPAK (TO-252) |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 17.2 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 2.2V |
| Minimum Gate Threshold Voltage | 1.2V |
| Maximum Power Dissipation | 58 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -16 V, +16 V |
| Number of Elements per Chip | 1 |
| Width | 6.22mm |
| Minimum Operating Temperature | -55 °C |
| Typical Gate Charge @ Vgs | 45 nC @ 10 V |
| Height | 2.3mm |
| Series | OptiMOS P |
| Maximum Operating Temperature | +175 °C |
| Length | 6.5mm |
| Transistor Material | Si |
