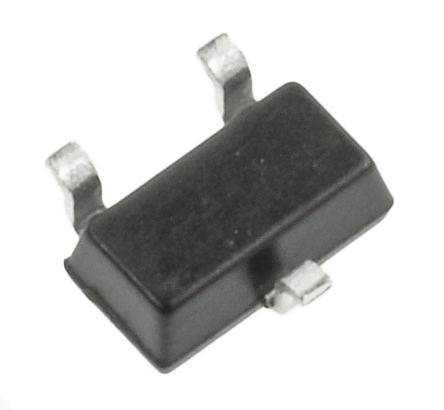

BSS138WH6327XTSA1 N-Channel MOSFET, 280 mA, 60 V SIPMOS, 3-Pin SOT-323 Infineon [BSS138WH6327XTSA1]; 826-9989
by Infineon
0₫
Mã kho: 8269989
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 280 mA |
| Maximum Drain Source Voltage | 60 V |
| Package Type | SOT-323 (SC-70) |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 6 Ω |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 1.4V |
| Minimum Gate Threshold Voltage | 0.6V |
| Maximum Power Dissipation | 500 mW |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Maximum Operating Temperature | +150 °C |
| Length | 2mm |
| Transistor Material | Si |
| Series | SIPMOS |
| Minimum Operating Temperature | -55 °C |
| Height | 0.8mm |
| Width | 1.25mm |
| Typical Gate Charge @ Vgs | 1 nC @ 10 V |
