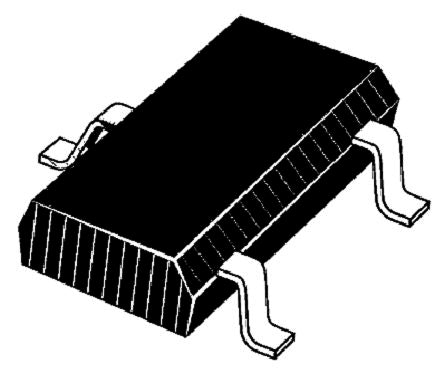

BSR316PH6327XTSA1 P-Channel MOSFET, 360 mA, 100 V BSR316P, 3-Pin SC-59 Infineon [BSR316PH6327XTSA1]; 170-2250
by Infineon
0₫
Mã kho: 1702250
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | P |
| Maximum Continuous Drain Current | 360 mA |
| Maximum Drain Source Voltage | 100 V |
| Package Type | SC-59 |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 2.2 Ω |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 1V |
| Minimum Gate Threshold Voltage | 2V |
| Maximum Power Dissipation | 500 mW |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | 20 V |
| Number of Elements per Chip | 1 |
| Width | 1.6mm |
| Minimum Operating Temperature | -55 °C |
| Length | 3mm |
| Forward Diode Voltage | 1.1V |
| Automotive Standard | AEC-Q101 |
| Typical Gate Charge @ Vgs | 5.3 nC @ 10 V |
| Height | 1.1mm |
| Series | BSR316P |
| Maximum Operating Temperature | +150 °C |
