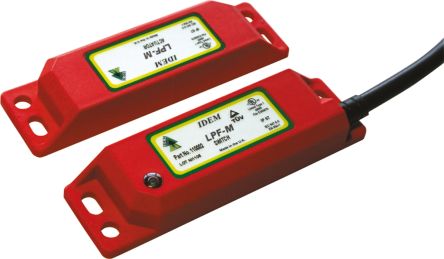

LPF-RFID-M Magnetic, RFID Safety Switch, Plastic, 24 V dc [404101]; 826-4328
by IDEM
0₫
Mã kho: 8264328
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Supply Voltage | 24 V dc |
| Safety Contacts | 2NC |
| Housing Material | Plastic |
| Auxiliary Contacts | NO |
| Connection Type | 2m cable |
| Switch Type | Rectangular |
| Terminal Type | Pre-Wired |
| Series | LPF-RFID-M |
| Switching Distance | 10 (Close) mm, 20 (Open) mm |
| IP Rating | IP67 |
| Supply Current | 200 mA |
| Actuator Included | Yes |
| Width | 25 (Actuator) mm, 25 (Switch) mm |
| Housing Colour | Red |
| Sensor Principle | Magnetic, RFID |
| Dimensions | 88 x 25 x 14 (Actuator) mm, 88 x 25 x 14 (Switch) mm |
| Safety Category | 4 |
| Number of Approach Directions | 2 |
| Actuator Type | Master Coded |
| Depth | 14 (Actuator) mm, 14 (Switch) mm |
| Length | 88 (Actuator) mm, 88 (Switch) mm |
