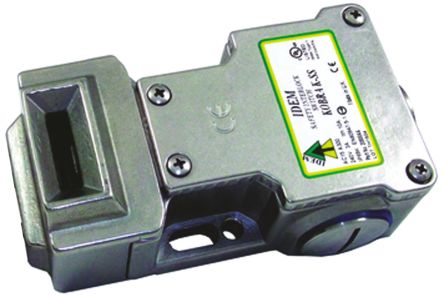

K-SS Safety Interlock Switch, Stainless Steel, 3NC/1NO [208007]; 826-3906
by IDEM
0₫
Mã kho: 8263906
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Connection Type | M20 |
| Lock Style | Key |
| Normal State Configuration | 3NC/1NO |
| Housing Material | Stainless Steel |
| Maximum AC Voltage | 240V |
| Safety Contacts | 3NC |
| Range | Kobra |
| Number of Head Directions | 4 |
| Series | K-SS |
| Auxiliary Contacts | 1NO |
| Depth | 37.5mm |
| Dimensions | 103.5 x 58 x 37.5 mm |
| Width | 58mm |
| Length | 103.5mm |
| IP Rating | IP67, IP69K |
| Maximum Current | 0.416666666666667 |
| Maximum Operating Temperature | +80°C |
| Minimum Operating Temperature | -25°C |
