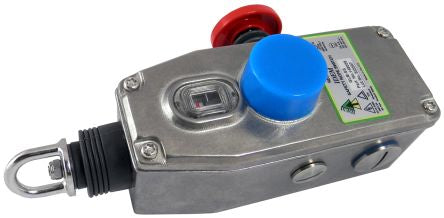

GLM-SS Cable Switch with E-Stop, 50m, 2NC, NO [148005]; 123-7515
by IDEM
0₫
Mã kho: 1237515
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Range | Guardian Line |
| Series | GLM-SS |
| Reset Button | Yes |
| Pole Configuration | 3P |
| Normal State Configuration | NO, 2NC |
| Indicator Type | Switch Status |
| Maximum Rope Span | 50m |
| Maximum Current | 0.125 |
| Maximum AC Voltage | 240V |
| Housing Material | 316 Stainless Steel |
| Number of Cable Entries | 3 |
| Conduit Entry | M20 |
| Size of Cable Entries | M20 |
| Depth | 74mm |
| Minimum Operating Temperature | -25°C |
| Dimensions | 90 x 139 x 74 mm |
| Standards Met | CE, CULus, TUV |
| Maximum Operating Temperature | +80°C |
| IP Rating | IP69K |
| E-Stop Button | Yes |
| Length | 90mm |
| Width | 139mm |
