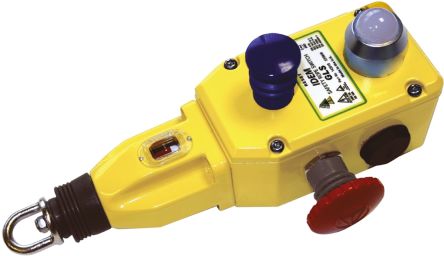

GLS Cable Switch with E-Stop, Straight, 80m, 2NO/2NC [142076A]; 826-4085
by IDEM
0₫
Mã kho: 8264085
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Range | Guardian Line |
| Series | GLS |
| Reset Button | Yes |
| Pole Configuration | 4P |
| Normal State Configuration | 2NO/2NC |
| Mounting Orientation | Straight |
| Maximum Rope Span | 80m |
| Maximum Current | 0.125 |
| Maximum AC Voltage | 250V |
| Maximum DC Voltage | 250V |
| Housing Material | Die Cast Aluminium |
| Number of Cable Entries | 3 |
| Conduit Entry | M20 |
| Size of Cable Entries | M20 |
| Dimensions | 239 x 63 x 54 mm |
| E-Stop Button | Yes |
| Maximum Operating Temperature | +80°C |
| IP Rating | IP67 |
| Length | 239mm |
| Minimum Operating Temperature | -25°C |
| Depth | 54mm |
| Width | 63mm |
