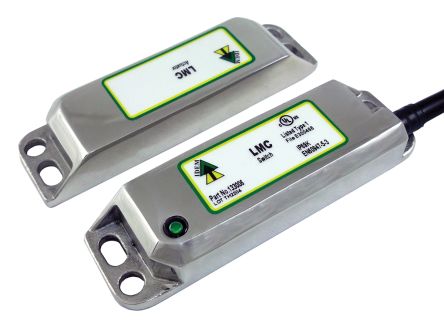

HYGIECODE LMC Magnetic Safety Switch, 316 Stainless Steel, 24 V dc [133005]; 123-7521
by IDEM
0₫
Mã kho: 1237521
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Supply Voltage | 24 V dc |
| Safety Contacts | 2NC |
| Housing Material | 316 Stainless Steel |
| Auxiliary Contacts | NO |
| Connection Type | 2m cable |
| Switch Type | Rectangular |
| Range | HYGIECODE |
| Terminal Type | Cable |
| Series | LMC |
| Switching Distance | 10 (Close) mm, 20 (Open) mm |
| IP Rating | IP67, IP69K |
| Supply Current | 200 mA |
| Actuator Included | Yes |
| Depth | 14mm |
| Actuator Type | Coded |
| Dimensions | 88 x 25 x 14 mm |
| Number of Approach Directions | 2 |
| Standards Met | CE, CULus Listed, TUV Certified |
| Length | 88mm |
| Sensor Principle | Magnetic |
| Safety Category | 4 |
| Width | 25mm |
