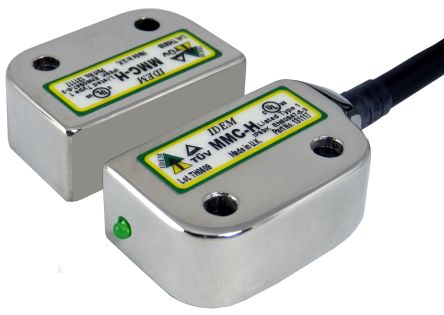

HYGIECODE MMC-H Magnetic Safety Switch, 316 Stainless Steel, 24 V dc [131106]; 123-7525
by IDEM
0₫
Mã kho: 1237525
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Supply Voltage | 24 V dc |
| Safety Contacts | 2NC |
| Housing Material | 316 Stainless Steel |
| Auxiliary Contacts | NO |
| Connection Type | 5m cable |
| Switch Type | Rectangular |
| Range | HYGIECODE |
| Terminal Type | Cable |
| Series | MMC-H |
| Switching Distance | 8 (Close) mm, 12 (Open) mm |
| IP Rating | IP67, IP69K |
| Supply Current | 200 mA |
| Actuator Included | Yes |
| Width | 15mm |
| Safety Category | 4 |
| Sensor Principle | Magnetic |
| Number of Approach Directions | 2 |
| Dimensions | 45 x 15 x 26 mm |
| Actuator Type | Coded |
| Length | 45mm |
| Standards Met | CE, CULus Listed, TUV Certified |
| Depth | 26mm |
