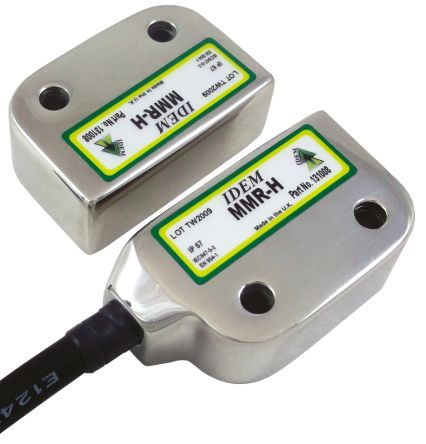

Hygiemag MMR-H Magnetic Safety Switch, 316 Stainless Steel, 24 V dc [131008]; 826-4259
by IDEM
0₫
Mã kho: 8264259
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Supply Voltage | 24 V dc |
| Safety Contacts | 2NC |
| Housing Material | 316 Stainless Steel |
| Auxiliary Contacts | NO |
| Connection Type | M12 |
| Switch Type | Rectangular |
| Range | HYGIEMAG |
| Terminal Type | 8-Pin M12 Connector |
| Series | MMR-H |
| Switching Distance | 10 (Close) mm, 20 (Open) mm |
| IP Rating | IP69K |
| Supply Current | 200 (Auxiliary Channel) mA, 500 (Safety Channels) mA |
| Actuator Included | Yes |
| Dimensions | 39 x 26 x 15 (Actuator) mm, 45 x 26 x 15 (Switch) mm |
| Length | 39 (Actuator) mm, 45 (Switch) mm |
| Actuator Type | Magnetic |
| Number of Approach Directions | 2 |
| Depth | 15 (Actuator) mm, 15 (Switch) mm |
| Safety Category | 4 |
| Width | 26 (Actuator) mm, 26 (Switch) mm |
| Sensor Principle | Magnetic |
