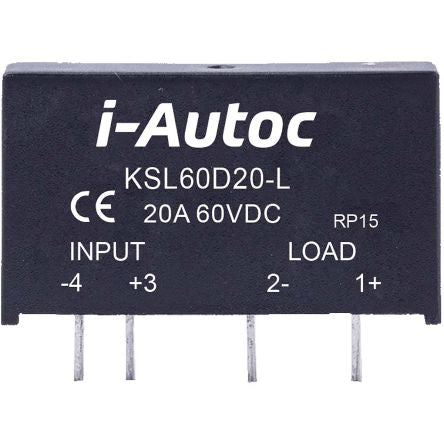

i-Autoc KSL Series 6V dc PCB Mount Solid State Relay, PCB Pin [KSL60D20-L]; 102-5523
by i-Autoc
0₫
Mã kho: 1025523
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 6V dc |
| Switching Current | 20 A |
| Mounting Type | PCB Mount |
| Terminal Type | PCB Pin |
| Length | 44.5mm |
| Depth | 10.5mm |
| Series | KSL |
| Height | 26mm |
| Dimensions | 44.5 x 10.5 x 26mm |
| Input Current | 35mA |
| Operating Temperature Range | -30 → +80°C |
| Turn On Time | 1ms |
| Control Resistance | 3.6mΩ |
| Standards Met | CE |
| Maximum Operating Temperature | +80°C |
| Minimum Operating Temperature | -30°C |
| Turn Off Time | 1ms |
| Special Features | High Inrush Current |
