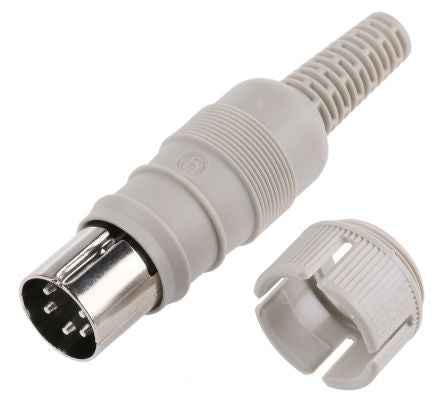

Hirschmann MAS Series, 5 Pole Din Plug Plug, 4A, 34 V ac/dc IP30, Screw Lock [930964517]; 168-5582
by Hirschmann
0₫
Mã kho: 1685582
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Number of Contacts | 5 |
Gender | Male |
Mounting Type | Cable Mount |
Mating Type | Screw Lock |
Termination Method | Solder |
Body Orientation | Straight |
Current Rating | 4A |
Voltage Rating | 34 V ac/dc |
IP Rating | IP30 |
Shielded/Unshielded | Shielded |
Series | MAS |
Housing Material | PE |
Maximum Operating Temperature | +60°C |
Minimum Operating Temperature | -20°C |
Contact Material | Brass |
Contact Plating | Tin |
