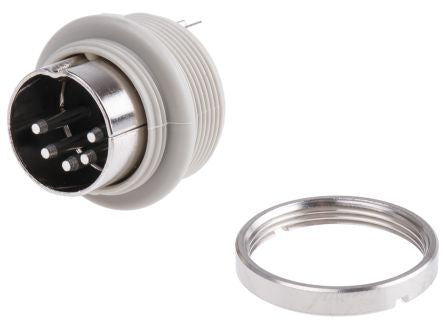

5 WAY 180DEG SCREW LOCK CHASSIS DIN PLUG [930957517]; 190-2390
by Hirschmann
0₫
Mã kho: 1902390
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 5 |
| Gender | Male |
| Mounting Type | Panel Mount |
| Mating Type | Screw Lock |
| Termination Method | Solder |
| Body Orientation | Straight |
| Current Rating | 4A |
| Voltage Rating | 34 V ac/dc |
| IP Rating | IP30 |
| Shielded/Unshielded | Shielded |
| DIN Number | DIN 41524 |
| Series | MASEI |
| Housing Material | PE |
| Contact Material | Brass |
| Contact Plating | Tin |
| Maximum Operating Temperature | +60°C |
| Minimum Operating Temperature | -20°C |
