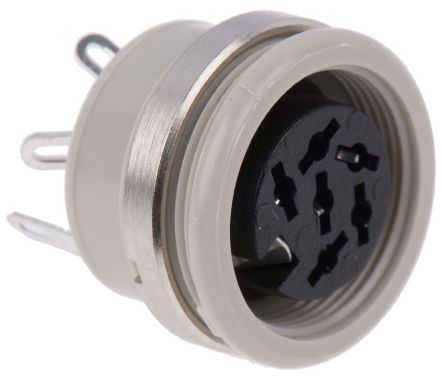

Hirschmann MAB Series, 6 Pole Din Socket Socket, DIN 45322, 4A, 34 V ac/dc IP30, Screw Lock [930954517]; 776-123
by Hirschmann
0₫
Mã kho: 776123
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 6 |
| Gender | Female |
| Mounting Type | Panel Mount |
| Mating Type | Screw Lock |
| Termination Method | Solder |
| Body Orientation | Straight |
| Current Rating | 4A |
| Voltage Rating | 34 V ac/dc |
| IP Rating | IP30 |
| Shielded/Unshielded | Unshielded |
| DIN Number | DIN 45322 |
| Series | MAB |
| Housing Material | PE |
| Minimum Operating Temperature | -20°C |
| Contact Plating | Tin |
| Maximum Operating Temperature | +60°C |
| Contact Material | Brass |
