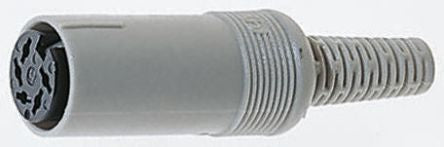

Hirschmann MAK Series, 8 Pole Miniature Din Socket Socket, DIN 41524, 4A, 34 V ac/dc IP30 [930348517]; 776-460
by Hirschmann
0₫
Mã kho: 776460
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Number of Contacts | 8 |
Gender | Female |
Mounting Type | Cable Mount |
Connector Size | Miniature |
Termination Method | Solder |
Body Orientation | Straight |
Current Rating | 4A |
Voltage Rating | 34 V ac/dc |
IP Rating | IP30 |
Shielded/Unshielded | Shielded |
DIN Number | DIN 41524 |
Series | MAK |
Housing Material | PE |
Contact Plating | Tin |
Contact Material | Brass |
Minimum Operating Temperature | -20°C |
Maximum Operating Temperature | +60°C |
