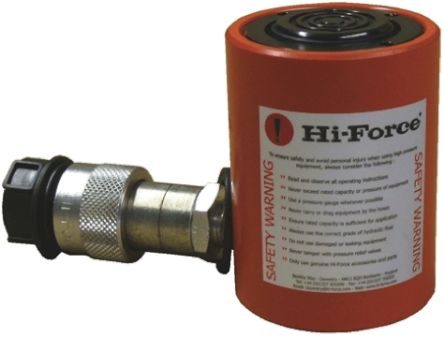

Hi-Force Single, Portable Low Height Hydraulic Cylinder, HLS101, 10T, 40mm stroke [HLS101]; 808-012
by Hi-Force
0₫
Mã kho: 808012
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Manufacturer Series | HLS |
Single/Double Acting | Single |
Capacity | 10t |
Stroke | 40mm |
Closed Height | 95mm |
Extended Height | 135mm |
Cylinder Effective Area | 14.4cm² |
Oil Capacity | 58cm³ |
Outside Diameter | 2.76in |
Maximum Operating Pressure | 10000 psi |
Weight | 2.4kg |
