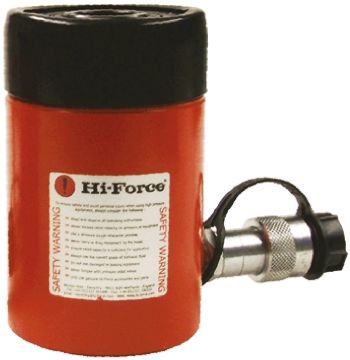

Hi-Force Single Portable Hydraulic Cylinder - Hollow Pulling Type HHS202, 23T, 50mm [HHS202]; 808-129
by Hi-Force
0₫
Mã kho: 808129
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Manufacturer Series | HHS |
| Single/Double Acting | Single |
| Capacity | 23t |
| Stroke | 50mm |
| Closed Height | 160mm |
| Extended Height | 210mm |
| Cylinder Effective Area | 33.3cm² |
| Oil Capacity | 167cm³ |
| Centre Hole Diameter | 51mm |
| Outside Diameter | 82.5mm |
| Maximum Operating Pressure | 700 bar |
| Weight | 7kg |
