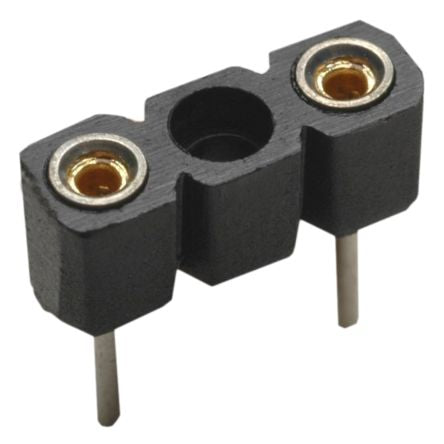

2 Way HARWIN Vertical PCB Mount 5.08mm SIL Socket, Solder, 1.5A [D2899-42]; 909-4234
by HARWIN
0₫
Mã kho: 9094234
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Number of Contacts | 2 |
Contact Material | Beryllium Copper |
Contact Plating | Gold over Nickel |
Pitch | 5.08mm |
Orientation | Vertical |
Termination Method | Solder |
Mounting Type | Through Hole |
Housing Material | PCT |
Current Rating | 1.5A |
Dimensions | 7.62 x 2.64 x 3mm |
Depth | 3mm |
Length | 7.62mm |
Maximum Operating Temperature | +125°C |
Minimum Operating Temperature | -55°C |
Width | 2.64mm |
