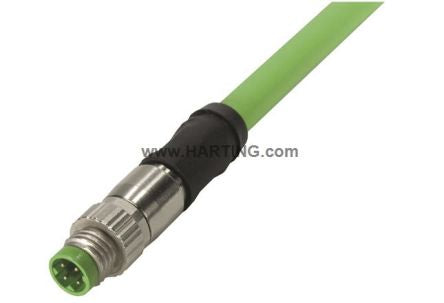

Harting Circular Connectors M8 Series, Straight M8 to Straight M8 Industrial Automation Cable Assembly, 4 Core [2134C7C7477075]; 175-1783
by HARTING
0₫
Mã kho: 1751783
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Connector A | Straight M8 |
Connector B | Straight M8 |
Length | 7.5m |
Number of Cores | 4 |
Connector A Number of Contacts | 4 |
Connector B Number of Contacts | 4 |
Sheath Colour | Green |
Number of Strands | 7 |
IP Rating | IP67 |
Cable Shape | Round |
Cross Sectional Area | 0.34 mm² |
Connector A Housing Gender | Plug |
Series | Circular Connectors M8 |
Maximum Operating Temperature | +80°C |
Size of Strands | 22 AWG |
Connector B Housing Gender | Plug |
Conductor Material | Copper |
Outer Sheath Material | Polyurethane |
Minimum Operating Temperature | -30°C |
Shielding | Shielded |
American Wire Gauge | 22 |
Sheath Material | Polyurethane PUR |
Insulation Material | PUR |
Outer Diameter | 10.1mm |
