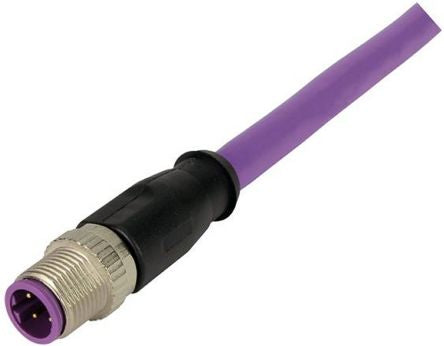

Harting 2134 Series, Straight M12 to Straight M12 Cable assembly, 2 Core , 1m Cable [21348889487010]; 877-4982
by HARTING
0₫
Mã kho: 8774982
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Connector A | Straight M12 |
| Connector B | Straight M12 |
| Length | 1m |
| Number of Cores | 2 |
| Connector A Number of Contacts | 4 |
| Connector B Number of Contacts | 4 |
| Sheath Colour | Purple |
| IP Rating | IP67 |
| Cable Shape | Multicore |
| Cross Sectional Area | 0.25 mm² |
| Standards Met | IEC 61076-2-101, ISO/IEC 11 801, ISO/IEC 24 702, RoHS Compliant |
| Minimum Operating Temperature | -30°C |
| Shielding | Shielded |
| Sheath Material | Polyurethane PUR |
| Maximum Operating Temperature | +60°C |
| American Wire Gauge | 24 |
| Series | 2134 |
| Connector B Housing Gender | Plug |
| Connector A Housing Gender | Socket |
