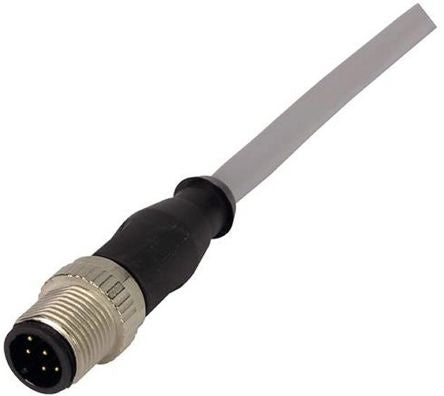

Harting 2134 Series, Straight M12 to Straight M12 Cable assembly, 8 Core , 1m Cable [21348485882010]; 877-4901
by HARTING
0₫
Mã kho: 8774901
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Connector A | Straight M12 |
| Connector B | Straight M12 |
| Length | 1m |
| Number of Cores | 8 |
| Connector A Number of Contacts | 8 |
| Connector B Number of Contacts | 8 |
| Sheath Colour | Grey |
| IP Rating | IP67 |
| Cable Shape | Multicore |
| Cross Sectional Area | 0.25 mm² |
| Connector B Housing Gender | Plug |
| Connector A Housing Gender | Socket |
| Maximum Operating Temperature | +80°C |
| Series | 2134 |
| Shielding | Unshielded |
| Standards Met | IEC 61076-2-101, ISO/IEC 11 801, ISO/IEC 24 702, RoHS Compliant |
| Minimum Operating Temperature | -25°C |
| American Wire Gauge | 24 |
| Sheath Material | Polyurethane PUR |
