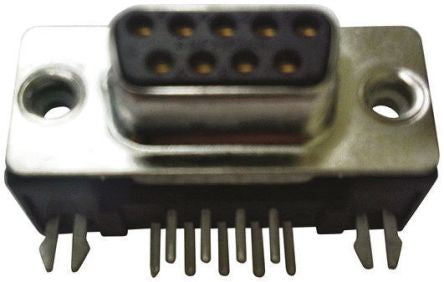

Harting D-Sub Standard Series, 9 Way Right Angle Through Hole PCB D-sub Connector Socket, 2.77mm Pitch [09681535612]; 740-7348
by HARTING
0₫
Mã kho: 7407348
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 9 |
| Gender | Female |
| Body Orientation | Right Angle |
| Mounting Type | Through Hole |
| Pitch | 2.77mm |
| Mounting Hardware | Boardlocks, 4-40 UNC Threaded Inserts |
| Termination Method | Solder |
| Current Rating | 6.5A |
| Housing Material | Metal |
| Length | 30.9mm |
| Width | 18.2mm |
| Depth | 12.55mm |
| Dimensions | 30.9 x 18.2 x 12.55mm |
| Series Number | 968 |
| Series | D-Sub Standard |
