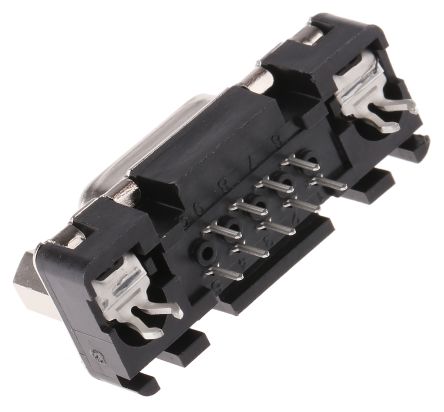

Harting D-Sub Standard Series, 9 Way Through Hole PCB D-sub Connector Socket, 2.74mm Pitch [09661556513]; 923-1893
by HARTING
0₫
Mã kho: 9231893
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 9 |
| Gender | Female |
| Body Orientation | Straight |
| Mounting Type | Through Hole |
| Pitch | 2.74mm |
| Termination Method | Solder |
| Mounting Hardware | Boardlocks, 4-40 UNC Threaded Inserts |
| Current Rating | 6.5A |
| Housing Material | Steel |
| Length | 31.2mm |
| Width | 6.2mm |
| Depth | 12.5mm |
| Dimensions | 31.2 x 6.2 x 12.5mm |
| Series Number | 966 |
| Series | D-Sub Standard |
| Contact Material | Copper Alloy |
